Viscopack

Viscopack®
VISCOPACK® INFORMATION
Viscopacks packages
Viscopack® Installation Requirements
  • Power: 230 VAC 3 phase 50 amp with ground
  • Air: not to exceed 25 CFM, 80 psi minimum, 120 psi maximum
  • Space: machine footprint 2211 mm (L) X 1325 mm (W) X 1855 MM (H)

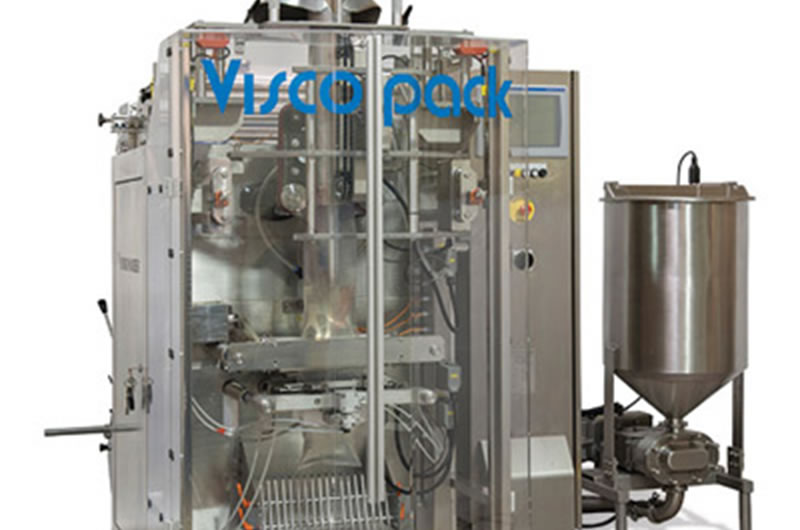

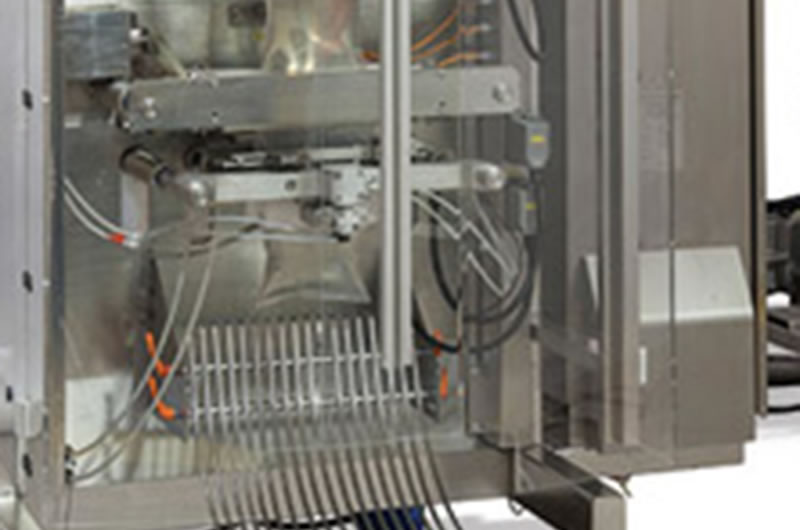

Viscopack® Features
  • Stainless steel construction, sanitary design for complete wash down
  • Easy access frame design for maintenance and cleaning
  • Allen Bradley control package for industry-leading controls and global support
  • Allen Bradley Panel View 1000 HMI touch screen for easy operator use
  • Temperature controls integrated with main control panel
  • Vacuum assist film feed belts for consistent bag length
  • Automatic film tracking
  • Designed with universal parts for easy maintenance
  • Proprietary seal design for improved seal performance
  • Product holding tank and pump sized to meet production requirements
Viscopack in use
Film Handling
  • Roll size: capacity for up to 23” OD rolls
  • Core: 6” diameter fi lm spindle with air-actuated core locking
Viscopacks packages

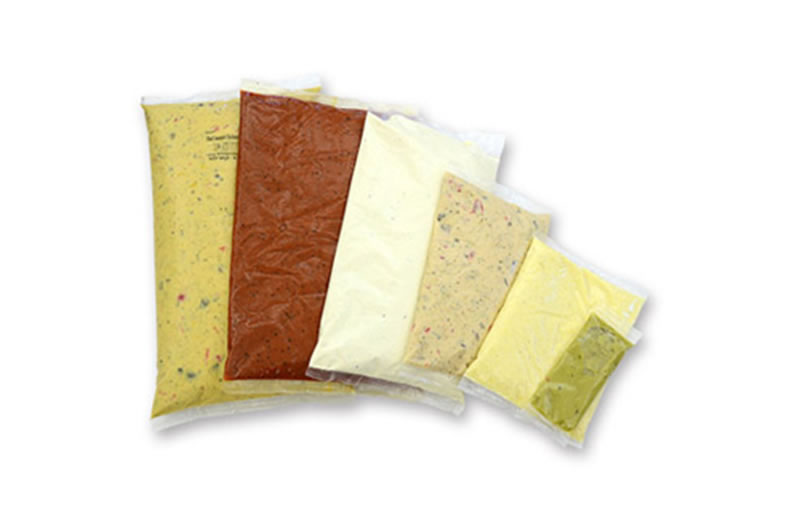

Package Size Range
  • Flat bag width: 65mm – 300mm (2.5 inch – 11.8 inch)
  • Bag cutoff length: 150mm – 600mm (5.9 inch – 23.6 inch)
Viscopack in Use
Machine Fill Speeds
  • 2.5 oz – 4 lb fi ll packages run at 65 – 80 ppm
  • 4 lb – 8 lb fi ll packages run at 45 – 60 ppm
Viscopack in Use
Machine Speed Determined By
  • Product viscosity
  • Product particulate characteristics
  • Preventive maintenance procedures
  • Operator skill level
